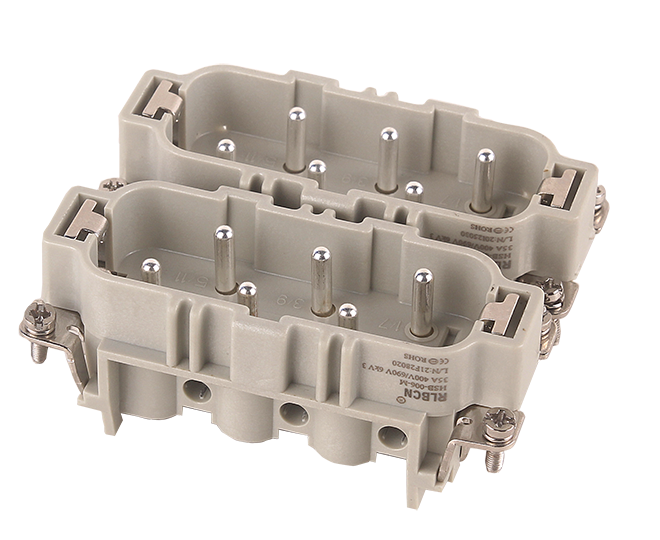

HSB-012-M

Model：HSB-012-M

Item No：HSB-012-M

Location：Male Inserts

Introduction：HSB-012-M

Product Certification：UL | CE | RoHS | CQC

Suitable Shell

Product Details

HSB Series | Heavy-Current Inserts HSB-012-M
Number of  Contacts 6+PE
Rated Current 35A
Rated Voltage 400/690V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HSB-012-M
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤1mΩ
Terminal Crimp Terminal
Wire Gauge 4.0~6.0mm2 (AWG 12-10)
Hoods/Housings H32B
