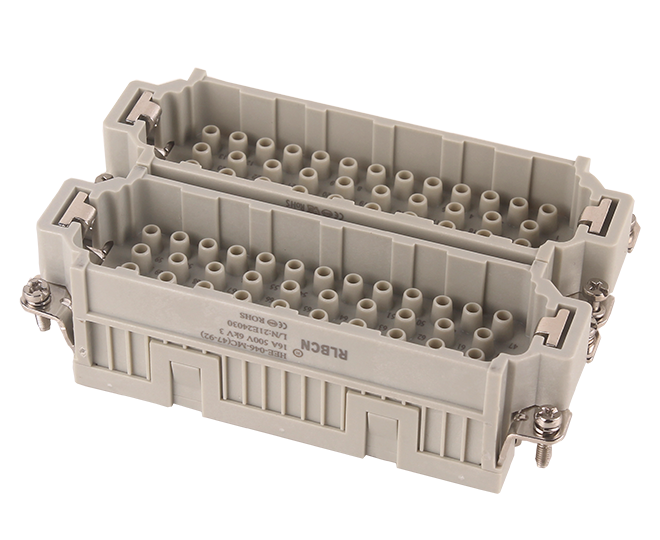

HEE-092-MC

Model:HEE-092-MC

Item No:HEE-092-MC

Location:Male Inserts

Introduction:HEE Series | High-density Connectors Inserts| HEE-092-MC

Product Certification:UL | CE | RoHS | CQC

Suitable Shell

Product Details

HEE Series | High-density Connectors HEE-092-MC
Number of  Contacts 64
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance 1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40~+125
Mechanical Working Life-mating Cycles 500
Contacts HEE-092-MC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance 1mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~4.0mm2 (AWG 26-14)
Tightening Torque 7.5mm
Hoods/Housings H48B
Cripmp Contacts 16A
