Item No:HEE-046-FC

Location:Female Inserts

Introduction:HEE Series | High-density Connectors Inserts| HEE-046-FC

Product Certification:UL | CE | RoHS | CQC

Suitable Shell

Product Details

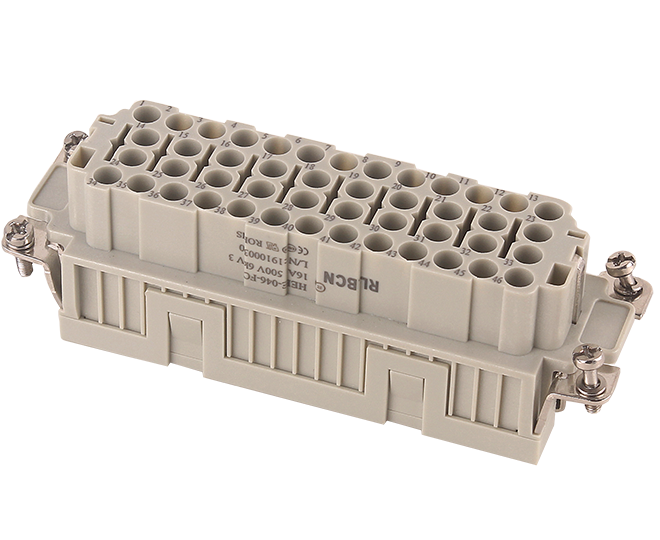

HEE Series | High-density Connectors HEE-046-FC
Number of  Contacts 46
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance 1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40~+125
Mechanical Working Life-mating Cycles 500
Contacts HEE-046-FC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance 1mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~4.0mm2 (AWG 26-14)
Tightening Torque 7.5mm
Hoods/Housings H24B
Cripmp Contacts 16A
