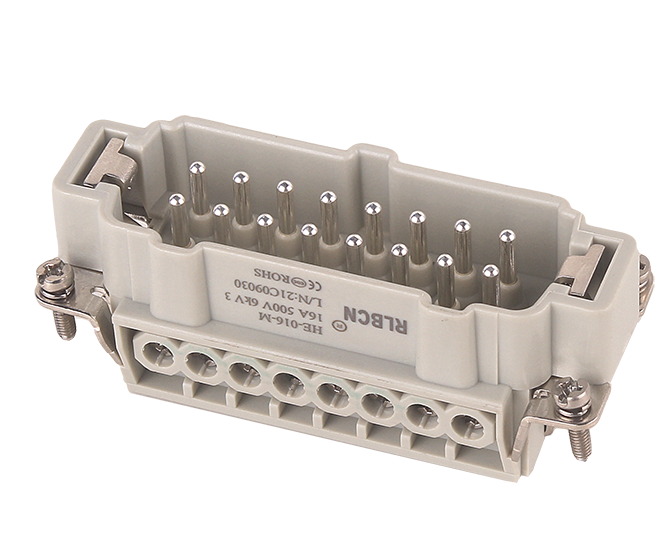

HE-016-M > RLBCN Connector

Model：HE-016-M

Item No：HE-016-M

Location：Male Inserts

Introduction：Connector Inserts HE-016-M

Product Certification：UL| CE | RoHS | CQC

HE Series Standard Insert	HE-016-M
No. of Contact	16
Rated Current	16A
Rated Voltage	500V
Rated Impulse Voltage	6KV
Pollution degree	3
Rated Voltage Acc. to Ul CSA	600V
Insulation Resistance	≥1010Ω
Material	Polycarbonate
Flammability acc.to UL94	V0
Limiting Temperatures	-40℃~+125℃
Mechanical Working Life-mating Cycles	≥500
Contacts	HE-016-M
Material	Copper Alloy
Surface	Silver plated
Contact Resistance	≤1mΩ
Wire Gauge	1.0-2.5mm2 (AWG18-14)
Tightening Torque	0.5N·m
Stripping Length	7.0mm
Hoods/Housings	H16B
