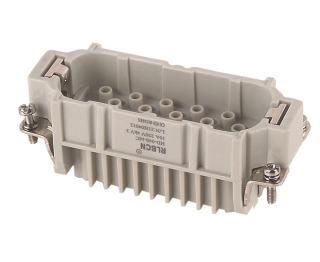

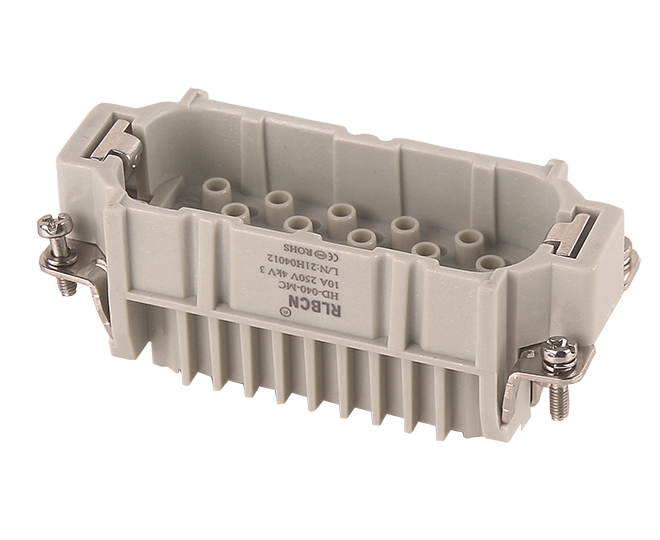

HD-040-MC

Model:HD-040-MC

Item No:HD-040-MC

Location:Male Inserts

Introduction:HD Series | Ultra High-Density Inserts | HD-040-MC

Product Certification:UL | CE | RoHS | CQC

Suitable Shell

Product Details

HD Series | Ultra High-Density Inserts HD-040-MC
Number of  Contacts 40
Electrical data acc. to EN 61 984
Rated Current 10A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Pollution degree 2 also 10A 230/400V 4kV 2
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance 1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40~+125
Mechanical Working Life-mating Cycles 500
Contacts HD-040-MC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤3mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~4.0mm2 (AWG 26-14)
Hoods/Housings H16B
Cripmp Contacts 10A
